Sale!

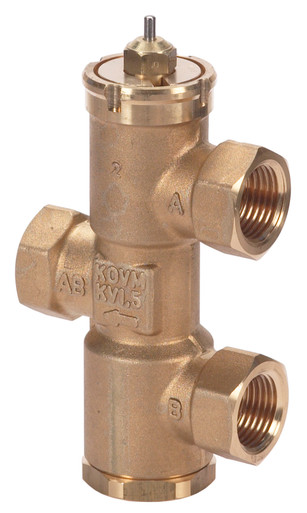

013U3020 Danfoss KOVM

013U3020 Danfoss KOVM

Original price was: $172.14.Current price is: $43.04.

SKU: 013U3020 Category: Tag:

Description

Product details

Gross weight 0.65 kg
Net weight 0.65 kg
EAN 5702421300442
Gross weight 0.65 kg
Net weight 0.65 kg
EAN 5702421300442



Application Heating and cooling
Cavitation factor 0.5
Connection size Rp 1/2
Connection standard ISO 7/1
Connection types Int. thread
KOVM PN10 15/2 3-way int. thread
Diameter [mm] 15 mm
Differential pressure range [bar] [Max] 1.6 bar
Flow characteristic Linear
Function Control valve
Function 2 Mixing valve
Kvs values [m³/h] 2 m3/h
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 90 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 3
Permissible media Circulation water
PN alternative VSP 6
Pressure nominal [bar] 10 bar
Product group Motorized control valves
Spindle material Stainless steel 18/8
Spindle position Normally open
Stroke [mm] 1.5 mm
Type KOVM
Valve body material Brass W. No 2.0402
Valve cone material EPDM
Application Heating and cooling
Cavitation factor 0.5
Connection size Rp 1/2
Connection standard ISO 7/1
Connection types Int. thread
KOVM PN10 15/2 3-way int. thread
Diameter [mm] 15 mm
Differential pressure range [bar] [Max] 1.6 bar
Flow characteristic Linear
Function Control valve
Function 2 Mixing valve
Kvs values [m³/h] 2 m3/h
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 90 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 3
Permissible media Circulation water
PN alternative VSP 6
Pressure nominal [bar] 10 bar
Product group Motorized control valves
Spindle material Stainless steel 18/8
Spindle position Normally open
Stroke [mm] 1.5 mm
Type KOVM
Valve body material Brass W. No 2.0402
Valve cone material EPDM

KOVM PN10 15/2 3-way int. thread
