Description
Product details
| Gross weight | 0.3 kg |
| Net weight | 0.29 kg |
| EAN | 5702420123684 |
| Gross weight | 0.3 kg |
| Net weight | 0.29 kg |
| EAN | 5702420123684 |
| Connection size in | Rp 1/2 |
| Connection size out | R 1/2 |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [bar] [Min] | 0.1 bar |
| Dimension | 15 |
| Dimension standard | F |
| Flow [l/h] [Max] | 135 L/h |
| Flow at setting 1 [l/h] [Max] | 10 L/h |
| Flow at setting 2 [l/h] [Max] | 15 L/h |
| Flow at setting 3 [l/h] [Max] | 20 L/h |
| Flow at setting 4 [l/h] [Max] | 35 L/h |
| Flow at setting 5 [l/h] [Max] | 50 L/h |
| Flow at setting 6 [l/h] [Max] | 80 L/h |
| Flow at setting 7 [l/h] [Max] | 100 L/h |
| Flow at setting N [l/h] [Max] | 135 L/h |
| Flow temperature [°C] [Max] | 95 °C |
| Presetting | yes |
| Product group | Radiator Valves |
| Test pressure [bar] | 16 bar |
| Type | RA-DV |
| Working pressure [bar] [Max] | 10 bar |
| Connection size in | Rp 1/2 |
| Connection size out | R 1/2 |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [bar] [Min] | 0.1 bar |
| Dimension | 15 |
| Dimension standard | F |
| Flow [l/h] [Max] | 135 L/h |
| Flow at setting 1 [l/h] [Max] | 10 L/h |
| Flow at setting 2 [l/h] [Max] | 15 L/h |
| Flow at setting 3 [l/h] [Max] | 20 L/h |
| Flow at setting 4 [l/h] [Max] | 35 L/h |
| Flow at setting 5 [l/h] [Max] | 50 L/h |
| Flow at setting 6 [l/h] [Max] | 80 L/h |
| Flow at setting 7 [l/h] [Max] | 100 L/h |
| Flow at setting N [l/h] [Max] | 135 L/h |
| Flow temperature [°C] [Max] | 95 °C |
| Presetting | yes |
| Product group | Radiator Valves |
| Test pressure [bar] | 16 bar |
| Type | RA-DV |
| Working pressure [bar] [Max] | 10 bar |

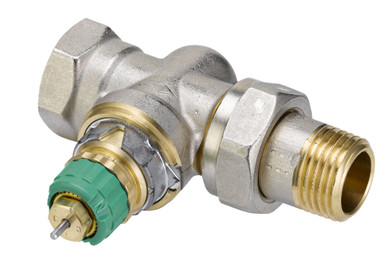

RA-DV 15 S “F”
Product details
| Gross weight | 0.3 kg |
| Net weight | 0.29 kg |
| EAN | 5702420123684 |
| Gross weight | 0.3 kg |
| Net weight | 0.29 kg |
| EAN | 5702420123684 |
| Connection size in | Rp 1/2 |
| Connection size out | R 1/2 |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [bar] [Min] | 0.1 bar |
| Dimension | 15 |
| Dimension standard | F |
| Flow [l/h] [Max] | 135 L/h |
| Flow at setting 1 [l/h] [Max] | 10 L/h |
| Flow at setting 2 [l/h] [Max] | 15 L/h |
| Flow at setting 3 [l/h] [Max] | 20 L/h |
| Flow at setting 4 [l/h] [Max] | 35 L/h |
| Flow at setting 5 [l/h] [Max] | 50 L/h |
| Flow at setting 6 [l/h] [Max] | 80 L/h |
| Flow at setting 7 [l/h] [Max] | 100 L/h |
| Flow at setting N [l/h] [Max] | 135 L/h |
| Flow temperature [°C] [Max] | 95 °C |
| Presetting | yes |
| Product group | Radiator Valves |
| Test pressure [bar] | 16 bar |
| Type | RA-DV |
| Working pressure [bar] [Max] | 10 bar |
| Connection size in | Rp 1/2 |
| Connection size out | R 1/2 |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [bar] [Min] | 0.1 bar |
| Dimension | 15 |
| Dimension standard | F |
| Flow [l/h] [Max] | 135 L/h |
| Flow at setting 1 [l/h] [Max] | 10 L/h |
| Flow at setting 2 [l/h] [Max] | 15 L/h |
| Flow at setting 3 [l/h] [Max] | 20 L/h |
| Flow at setting 4 [l/h] [Max] | 35 L/h |
| Flow at setting 5 [l/h] [Max] | 50 L/h |
| Flow at setting 6 [l/h] [Max] | 80 L/h |
| Flow at setting 7 [l/h] [Max] | 100 L/h |
| Flow at setting N [l/h] [Max] | 135 L/h |
| Flow temperature [°C] [Max] | 95 °C |
| Presetting | yes |
| Product group | Radiator Valves |
| Test pressure [bar] | 16 bar |
| Type | RA-DV |
| Working pressure [bar] [Max] | 10 bar |
