Description
Product details
| Gross weight | 0.04 kg |
| Net weight | 0.04 kg |
| EAN | 5702420033167 |
| Gross weight | 0.04 kg |
| Net weight | 0.04 kg |
| EAN | 5702420033167 |
| Connections | G 1/2′ A |
| Flow temperature [°C] [Max] | 120 °C |
| For tubings | Steel and Copper |
| For valves | RA 15/6T RA 15/6TB RA-FN 15 RA-N 15 RA-U/UN 15 RLV 15 RTD 15 |
| Product group | Compression fittings |
| Quantity per packing format | 10 pc |
| Software description | Compression Fitting |
| Test pressure [bar] | 16 bar |
| Thread | External |
| Tube dimension | 12 |
| Type | Compression fittings for steel and copper tubings |
| Usage | for steel & copper |
| Working pressure [bar] [Max] | 10 bar |
| Connections | G 1/2′ A |
| Flow temperature [°C] [Max] | 120 °C |
| For tubings | Steel and Copper |
| For valves | RA 15/6T RA 15/6TB RA-FN 15 RA-N 15 RA-U/UN 15 RLV 15 RTD 15 |
| Product group | Compression fittings |
| Quantity per packing format | 10 pc |
| Software description | Compression Fitting |
| Test pressure [bar] | 16 bar |
| Thread | External |
| Tube dimension | 12 |
| Type | Compression fittings for steel and copper tubings |
| Usage | for steel & copper |
| Working pressure [bar] [Max] | 10 bar |

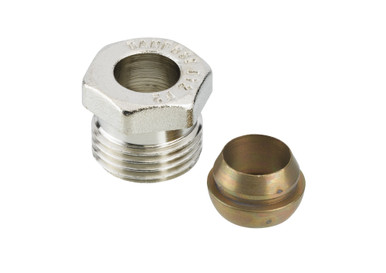

Comp. fittings for KOVM PN10 DN15 fi 12
Product details
| Gross weight | 0.04 kg |
| Net weight | 0.04 kg |
| EAN | 5702420033167 |
| Gross weight | 0.04 kg |
| Net weight | 0.04 kg |
| EAN | 5702420033167 |
| Connections | G 1/2′ A |
| Flow temperature [°C] [Max] | 120 °C |
| For tubings | Steel and Copper |
| For valves | RA 15/6T RA 15/6TB RA-FN 15 RA-N 15 RA-U/UN 15 RLV 15 RTD 15 |
| Product group | Compression fittings |
| Quantity per packing format | 10 pc |
| Software description | Compression Fitting |
| Test pressure [bar] | 16 bar |
| Thread | External |
| Tube dimension | 12 |
| Type | Compression fittings for steel and copper tubings |
| Usage | for steel & copper |
| Working pressure [bar] [Max] | 10 bar |
| Connections | G 1/2′ A |
| Flow temperature [°C] [Max] | 120 °C |
| For tubings | Steel and Copper |
| For valves | RA 15/6T RA 15/6TB RA-FN 15 RA-N 15 RA-U/UN 15 RLV 15 RTD 15 |
| Product group | Compression fittings |
| Quantity per packing format | 10 pc |
| Software description | Compression Fitting |
| Test pressure [bar] | 16 bar |
| Thread | External |
| Tube dimension | 12 |
| Type | Compression fittings for steel and copper tubings |
| Usage | for steel & copper |
| Working pressure [bar] [Max] | 10 bar |
