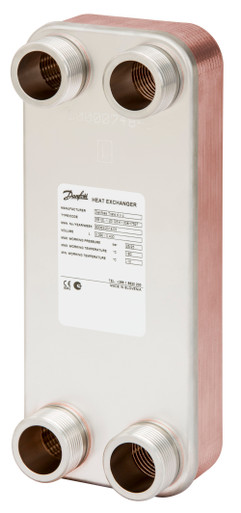

Description
Product details
| Gross weight |
7.63 kg |
| Net weight |
7.63 kg |
| Gross weight |
7.63 kg |
| Net weight |
7.63 kg |
| EAN |
5702425109089 |
| Approval type |
PED 97/23/EC GOST/Russia SVGW/Switzerland VA/Denmark |
| Assembly site |
8220/Danfoss/Slovenia/Kamnik |
| Bolt holes mounting brackets diameter [mm] |
9 mm |
| Brazing material |
Copper |
| Brazing material weight [Kg] |
0.016 kg |
| Channel volume per pcs side 1 [l] |
0.042 L |
| Channel volume per pcs side 2 [l] |
0.042 L |
| Channels |
Large |
| Connection diameter side 1 [mm] |
30 mm |
| Connection diameter side 2 [mm] |
30 mm |
| Connection length side 1 [mm] |
25 mm |
| Connection length side 2 [mm] |
25 mm |
| Connection side 1 |
G 1¼ |
| Connection side 2 |
G 1¼ |
| Connection standard |
DIN ISO 228/1 |
| Connection types |
Thread |
| Cover plate thickness front [mm] |
2 mm |
| Cover plate thickness rear [mm] |
2 mm |
|
XB12L-2-36/36 G5/4 |
| Flow type |
parallel |
| Heatsurface per plate [m²] |
0.034 m2 |
| Horizontal center porthole [mm] |
63 mm |
| Length between mounting holes [mm] |
65 mm |
| Number of passes |
2 |
| Number of plates |
82 |
| Number of plates maximum |
140 |
| Plate length [mm] |
286 mm |
| Plate material |
1.4404 |
| Plate pattern type |
MPHE |
| Plate thickness [mm] |
0.25 mm |
| Plate type |
L |
| Plate weight [Kg] |
61 kg |
| Plate width [mm] |
115 mm |
| Porthole diameter side 1 [mm] |
32 mm |
| Porthole diameter side 2 [mm] |
32 mm |
| Pressing depth [mm] |
1.5 mm |
| Product group |
Brazed Heat Exchangers |
| Product Status |
XI |
| Remarks |
per channel |
| Test pressure side 1 [bar] [Max] |
43 bar |
| Total height without feet [mm] |
289 mm |
| Total width [mm] |
118 mm |
| Type |
XB12L-2 |
| Vertical baseline to center porthole side 1 [mm] |
180 mm |
| Vertical baseline to center porthole side 2 [mm] |
180 mm |
| Vertical center porthole side 1 [mm] |
234 mm |
| Width between mounting holes [mm] |
60 mm |
| Working pressure side 1 [bar] [Max] |
25 bar |
| Working pressure side 2 [bar] [Max] |
25 bar |
| Working Temperature [°C] [Max] |
180 °C |
| Working Temperature [°C] [Min] |
-10 °C |
| Approval type |
PED 97/23/EC GOST/Russia SVGW/Switzerland VA/Denmark |
| Assembly site |
8220/Danfoss/Slovenia/Kamnik |
| Bolt holes mounting brackets diameter [mm] |
9 mm |
| Brazing material |
Copper |
| Brazing material weight [Kg] |
0.016 kg |
| Channel volume per pcs side 1 [l] |
0.042 L |
| Channel volume per pcs side 2 [l] |
0.042 L |
| Channels |
Large |
| Connection diameter side 1 [mm] |
30 mm |
| Connection diameter side 2 [mm] |
30 mm |
| Connection length side 1 [mm] |
25 mm |
| Connection length side 2 [mm] |
25 mm |
| Connection side 1 |
G 1¼ |
| Connection side 2 |
G 1¼ |
| Connection standard |
DIN ISO 228/1 |
| Connection types |
Thread |
| Cover plate thickness front [mm] |
2 mm |
| Cover plate thickness rear [mm] |
2 mm |
|
XB12L-2-36/36 G5/4 |
| Flow type |
parallel |
| Heatsurface per plate [m²] |
0.034 m2 |
| Horizontal center porthole [mm] |
63 mm |
| Length between mounting holes [mm] |
65 mm |
| Number of passes |
2 |
| Number of plates |
82 |
| Number of plates maximum |
140 |
| Plate length [mm] |
286 mm |
| Plate material |
1.4404 |
| Plate pattern type |
MPHE |
| Plate thickness [mm] |
0.25 mm |
| Plate type |
L |
| Plate weight [Kg] |
61 kg |
| Plate width [mm] |
115 mm |
| Porthole diameter side 1 [mm] |
32 mm |
| Porthole diameter side 2 [mm] |
32 mm |
| Pressing depth [mm] |
1.5 mm |
| Product group |
Brazed Heat Exchangers |
| Product Status |
XI |
| Remarks |
per channel |
| Test pressure side 1 [bar] [Max] |
43 bar |
| Total height without feet [mm] |
289 mm |
| Total width [mm] |
118 mm |
| Type |
XB12L-2 |
| Vertical baseline to center porthole side 1 [mm] |
180 mm |
| Vertical baseline to center porthole side 2 [mm] |
180 mm |
| Vertical center porthole side 1 [mm] |
234 mm |
| Width between mounting holes [mm] |
60 mm |
| Working pressure side 1 [bar] [Max] |
25 bar |
| Working pressure side 2 [bar] [Max] |
25 bar |
| Working Temperature [°C] [Max] |
180 °C |
| Working Temperature [°C] [Min] |
-10 °C |
