Description
Product details
| Gross weight |
0.9 kg |
| Net weight |
0.68 kg |
| Gross weight |
0.9 kg |
| Net weight |
0.68 kg |
| EAN |
5710104086200 |
| Connection types |
Internal thread |
|

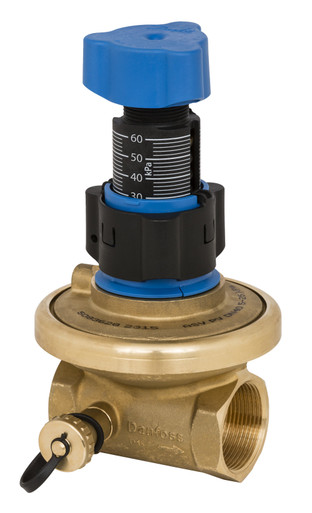

ASV-PV DN 15, 20-60 kPa, Internal thread, without insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] |
250 kPa |
| Differential pressure setting [kPa] [Max] |
60 kPa |
| Differential pressure setting [kPa] [Min] |
20 kPa |
| Factory setting [kPa] |
30 kPa |
| Impulse tube length [m] |
1.5 m |
| Kvs values [m³/h] |
1.6 m3/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
0 °C |
| Mounting position |
Return pipe |
| Pressure class |
PN 16 |
| Product group |
Automatic balancing |
| Product name |
ASV-PV DN 15, 20-60 kPa, w/o insulation |
| Shut-off function |
Yes |
| Type |
ASV-PV 4G |
| Valve body material |
Brass |
| Valve size |
DN 15 |
| Connection types |
Internal thread |
|
ASV-PV DN 15, 20-60 kPa, Internal thread, without insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] |
250 kPa |
| Differential pressure setting [kPa] [Max] |
60 kPa |
| Differential pressure setting [kPa] [Min] |
20 kPa |
| Factory setting [kPa] |
30 kPa |
| Impulse tube length [m] |
1.5 m |
| Kvs values [m³/h] |
1.6 m3/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
0 °C |
| Mounting position |
Return pipe |
| Pressure class |
PN 16 |
| Product group |
Automatic balancing |
| Product name |
ASV-PV DN 15, 20-60 kPa, w/o insulation |
| Shut-off function |
Yes |
| Type |
ASV-PV 4G |
| Valve body material |
Brass |
| Valve size |
DN 15 |
Product name: ASV-PV DN 15, 20-60 kPa, w/o insulation
Product details
| Gross weight |
0.9 kg |
| Net weight |
0.68 kg |
| Gross weight |
0.9 kg |
| Net weight |
0.68 kg |
| EAN |
5710104086200 |
| Connection types |
Internal thread |
|
ASV-PV DN 15, 20-60 kPa, Internal thread, without insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] |
250 kPa |
| Differential pressure setting [kPa] [Max] |
60 kPa |
| Differential pressure setting [kPa] [Min] |
20 kPa |
| Factory setting [kPa] |
30 kPa |
| Impulse tube length [m] |
1.5 m |
| Kvs values [m³/h] |
1.6 m3/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
0 °C |
| Mounting position |
Return pipe |
| Pressure class |
PN 16 |
| Product group |
Automatic balancing |
| Product name |
ASV-PV DN 15, 20-60 kPa, w/o insulation |
| Shut-off function |
Yes |
| Type |
ASV-PV 4G |
| Valve body material |
Brass |
| Valve size |
DN 15 |
| Connection types |
Internal thread |
|
ASV-PV DN 15, 20-60 kPa, Internal thread, without insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] |
250 kPa |
| Differential pressure setting [kPa] [Max] |
60 kPa |
| Differential pressure setting [kPa] [Min] |
20 kPa |
| Factory setting [kPa] |
30 kPa |
| Impulse tube length [m] |
1.5 m |
| Kvs values [m³/h] |
1.6 m3/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
0 °C |
| Mounting position |
Return pipe |
| Pressure class |
PN 16 |
| Product group |
Automatic balancing |
| Product name |
ASV-PV DN 15, 20-60 kPa, w/o insulation |
| Shut-off function |
Yes |
| Type |
ASV-PV 4G |
| Valve body material |
Brass |
| Valve size |
DN 15 |
