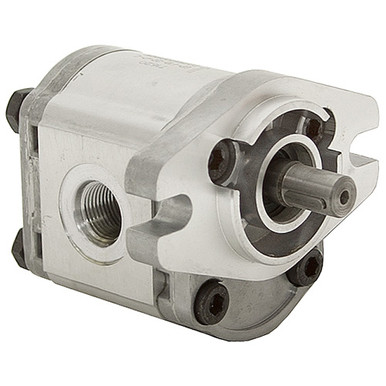

0.16 cu in Hydraulic Pump Dynamic GPF1027PC

Description

0.16 cu in DYNAMIC GPF1027PC HYDRAULIC PUMP
Brand new, DYNAMIC GP-F10 series hydraulic gear pump. Aluminum center section with cast iron end covers.

SPECIFICATIONS

• Brand Dynamic
• Model Number 71620
• Build Number GP-F10-27-P-C
• Disp. 0.16 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure:
    3190 PSI rated
    3770 PSI peak
• Speed:
    2000 RPM rated
    5000 RPM max.
• Flow:
    1.29 GPM rated
    3.22 GPM max.
• Mount 2 bolt SAE AA
• Shaft 1/2″ dia. x 1-1/16″ long with 1/8″ wide keyway
• Rqd. Filtration 25 micron
• Inlet Port SAE 8
• Outlet Port SAE 6
• Size 3.375″ x 4.03125″ x 3.3125″
• Shpg. 5 lbs.
